PC PP Hollow Sheet Machine
Product Desription
PP/PC hollow sheet machine is suitable for the production of PC/PP hollow grid sheet. PP hollow sheet is widely used in construction, decoration, advertising, road sound insulation, packaging and other industries. PP hollow sheet can also replace the corrugated board of the carton, with light weight, high strength, moisture-proof, anti-corrosion and other characteristics.
Equipment details
Our hot machine
?
?
?
PP/PC hollow sheet machine(corrugated plastic machine) is suitable for the production of PC/PP hollow grid sheet. PP hollow sheet?is widely used in construction, decoration, advertising, road sound insulation, packaging and other industries. PP hollow sheet can also replace the corrugated board of the carton, with light weight, high strength, moisture-proof, anti-corrosion and other characteristics.

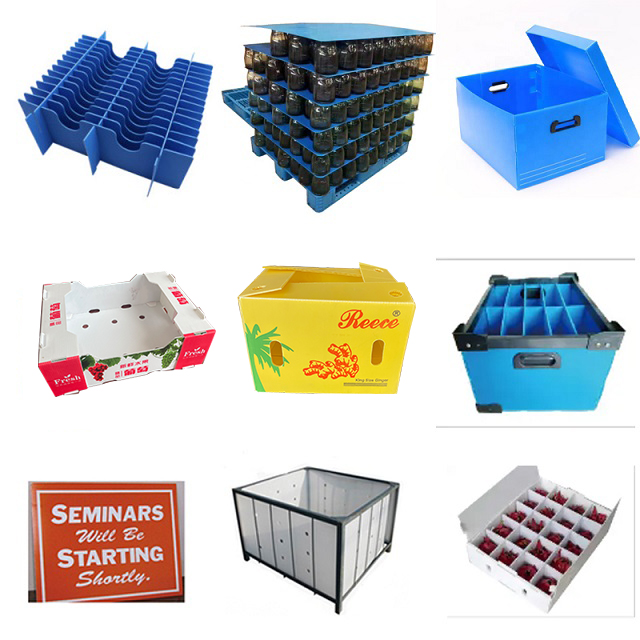

PP/PC hollow sheet application:
Packaging field: fruit and vegetable box, turnover box, display box, partition, gift box, food packaging,
Advertising: Political election plastic signs, special event signs, advertising signs, real estate signs, lawn decoration, indoor and outdoor signs
Protect refrigerators and household appliances. Floor protection board,
Stationery, art design and a variety of pattern boxes or exquisite gift bags.
We have all series high quality pc/PP hollow sheet machine ,the width of the products is 1220-2800 mm, and the thickness is 2 mm-12 mm.The extrusion line can reach 2-10 m/min, the high capacity at 200-600 kg/h.We provide high out production line with professional technology support,and auxiliary machine for package box making machines.
?
No. |
Machine name |
Quantity |
1 |
Material mixing machine? |
1 set |
2 |
Single screw extruder |
1 set |
3 |
Single screw co-extruder |
1 set |
4 |
Screen changer |
1 set |
5 |
Co-extruder mold:ABA? |
1 set |
6 |
Calibrating machine? |
1 set |
7 |
Six-pairs haul off machine ? |
1 set |
8 |
Preheating Oven |
2 sets |
9 |
Cooling device? |
1 set |
10 |
Corona treatment device? |
1 set |
11 |
Edge cutting device |
1 set |
12 |
Two-pairs haul off machine |
1 set |
13 |
Transverse cutting machine? |
1 set |
14 |
Stacker? |
1 set |
?
| Model | SK1400 | SK1850 | SK2300 | SK2600 | SK3000 |
| Extruder | SJ90x36 | SJ110x36 | SJ120x36 | SJ135x36 | SJ150x36 |
| Max.sheet width | 1250mm | 1700mm | 2150mm | 2450mm | 2800mm |
| Max,output | 200kg/h | 300kg/h | 400kg/h | 450kg/h | 500kg/h |
| Motor power | 75kw | 90kw | 110kw | 132kw | 160kw |
What is the process of producing the PP hollow sheet?

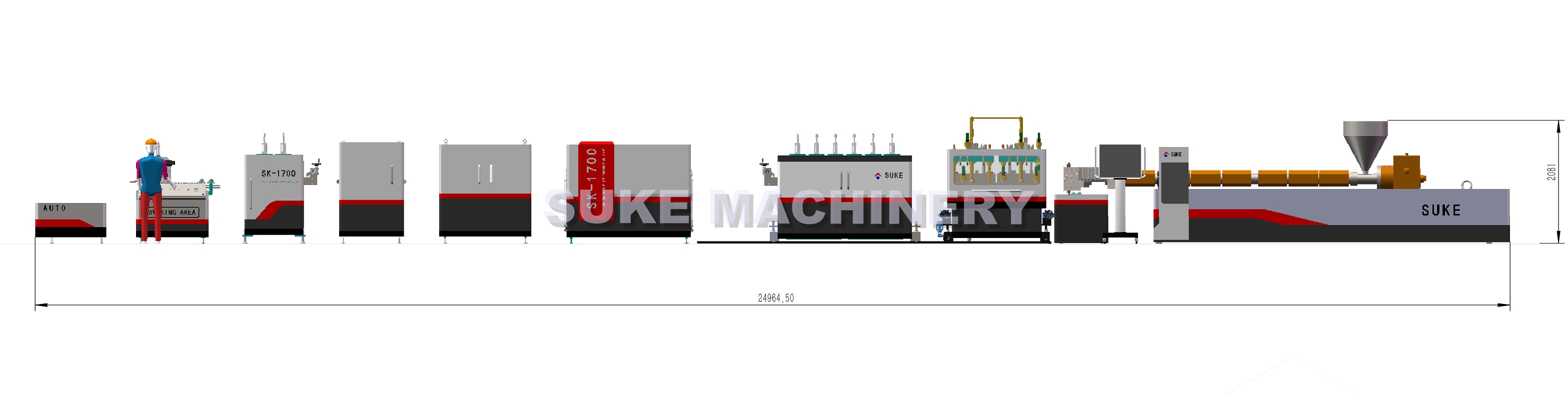

Vacuum loader —> Hopper dryer —> Single screw extruder —> Screen changer —>Calibrator —> 5-roll haul-off machine —>Oven—>Corona unit—> Cooling machine—>2-roll haul-off machine—>Crosswise cutter—>Stacker
Machine details：?

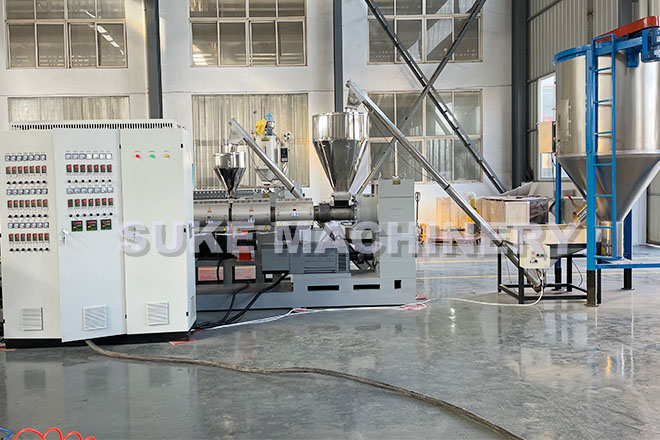

1.?Single screw extruder? ? ? ? ? ? ? ? ?
Inverter: ABB/Schneider/Delta
Screw: SJ110/SJ20/SJ150
Motor: 90-132kw?
Temperature control : OMRON?
Connector: SIEMENS?
Screw Feeding.?
Uniform Plasticization, Can add more than? 60% Filler

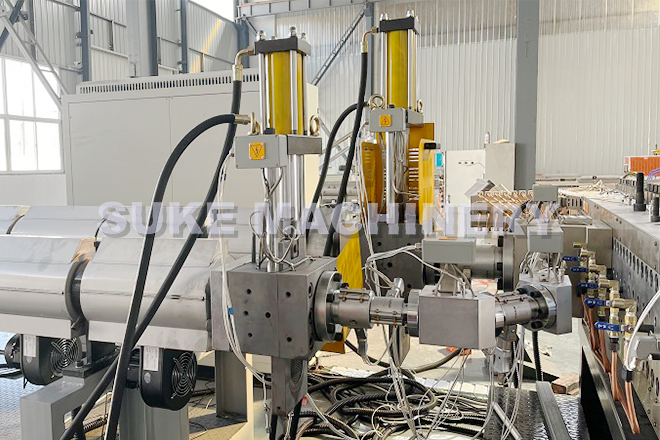

2.?screen exchanger :? ? ??
?Used for impurity filtration.??
Achieve non stop screen changing, it will? improve production efficiency, save cost.

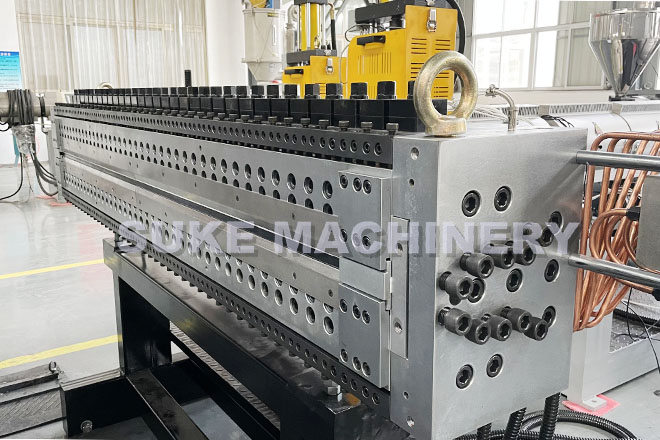

3.?T-Die Mould：?
?? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
Final Product width: 1400-3000mm
Heating zone: 13 zones
Forming plate: 2 sets

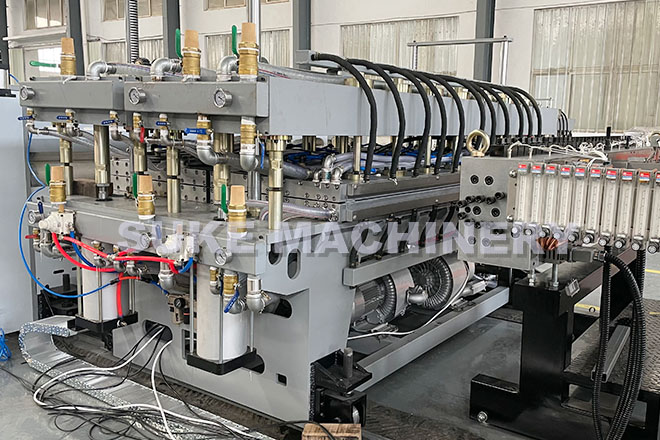

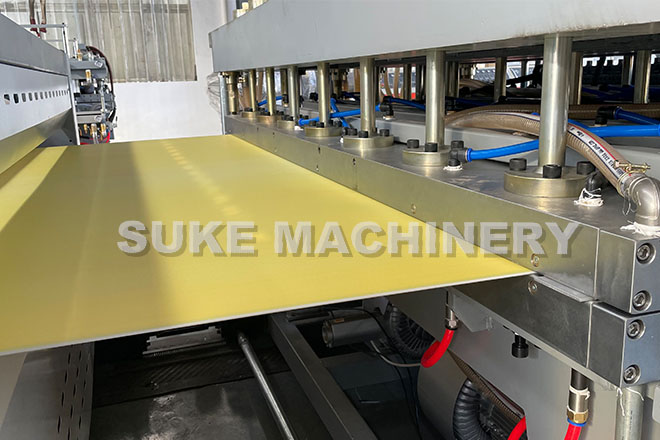

4.?Calibration Machine:
Inlet pipe with valve adjustment
Vertical bar structure, stuffy fire treatment,avoid deformation
central height can be adjusted a little
2sets vacuumed system

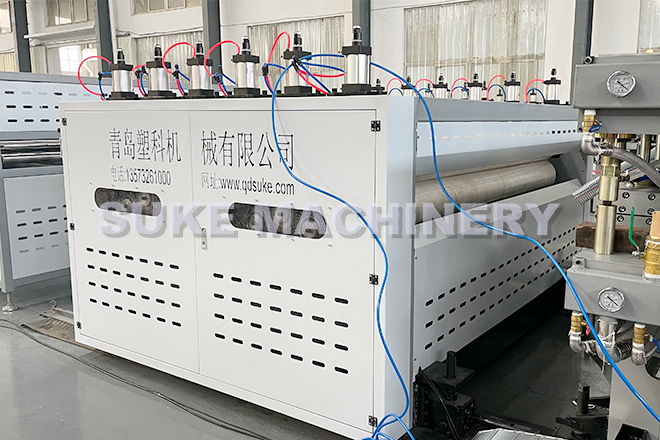

5.?Haul-off Machine：
two units of hau-off machine?
first one has 6 pairs of traction roll?
second one has 2 pair of tractron rolll?
clamp control by vacuum?

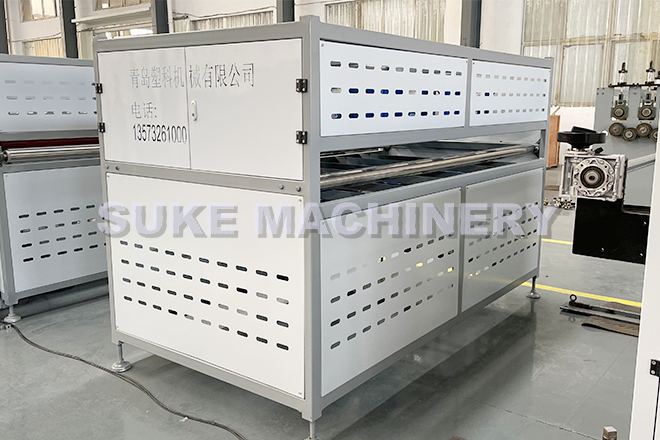

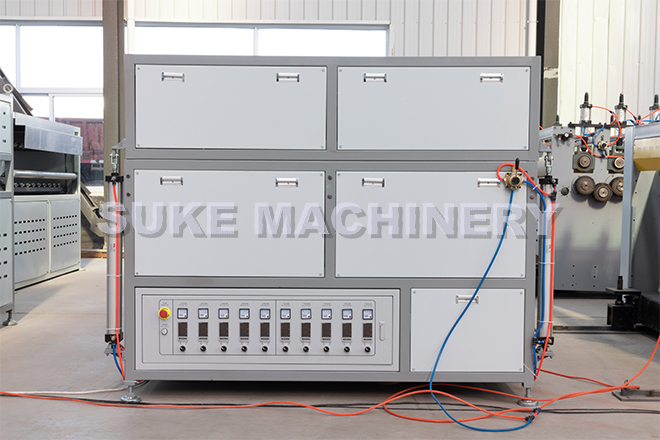

?Heating Oven? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??Cooling Fan
? ?

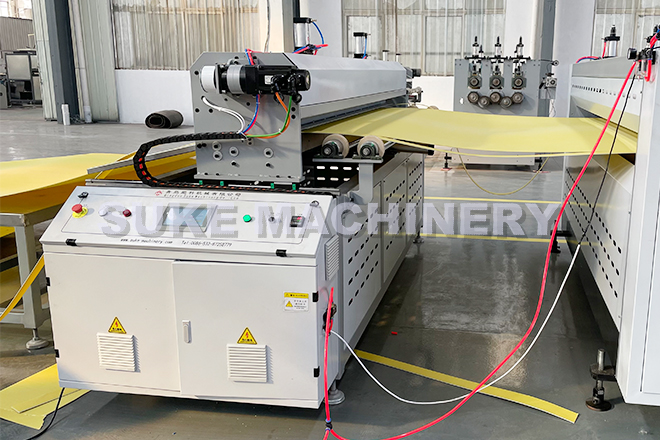

Cutting Machine：
PLC Control,?
Servo Motor
Traction belt moving?
Qingdao suke?Machinery Co., Ltd. as a professional manufacturer of plastic extrusion equipment, we have rich experience in PP hollow sheet machine. any need, welcome contact with us.?
